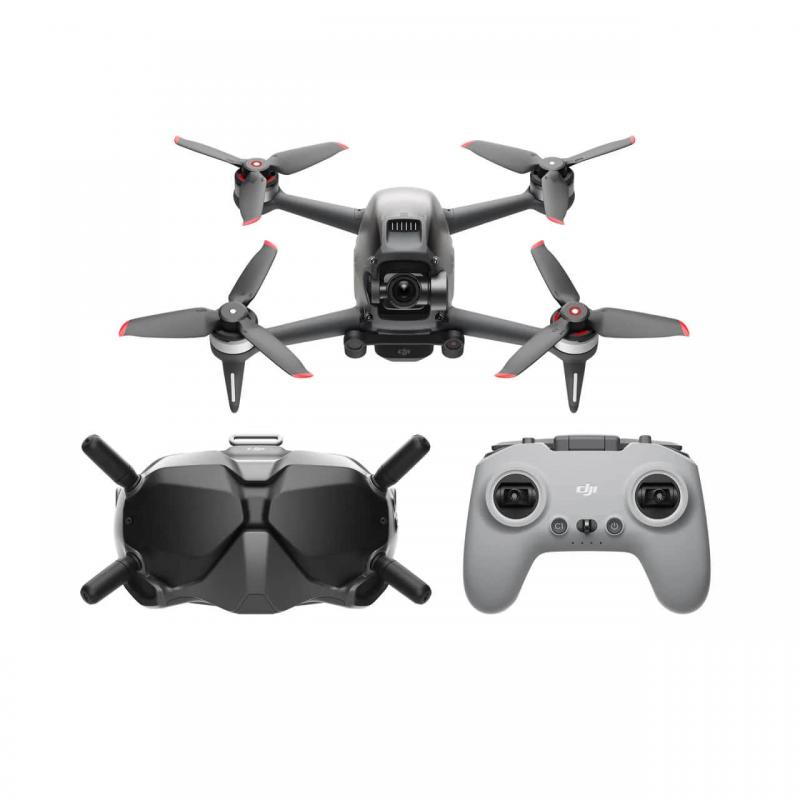

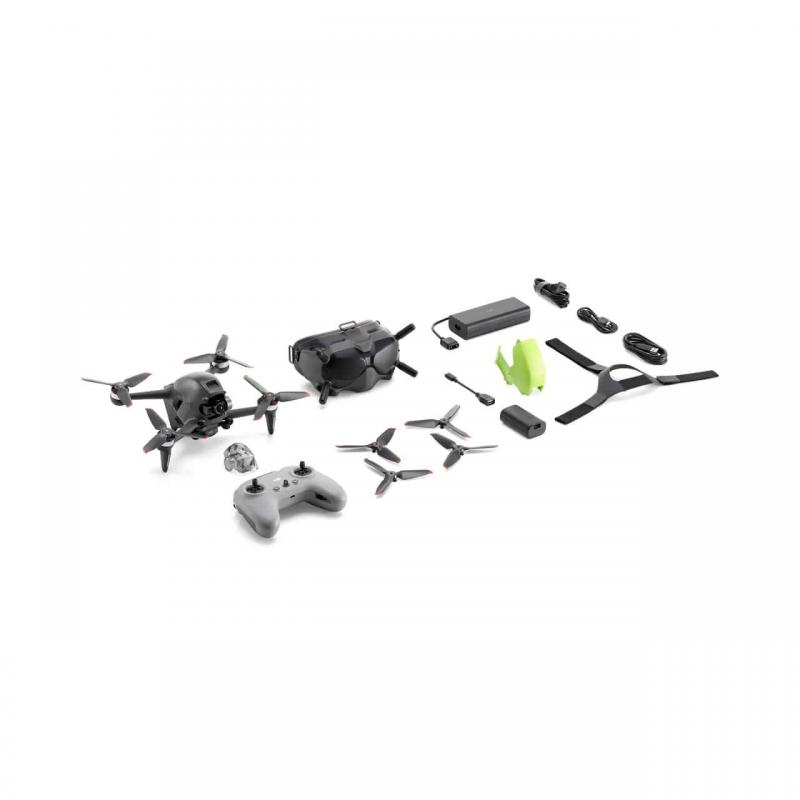

Kit Drona DJI FPV Explorer Combo, 4K, 12MP, Autonomie 20 minute, Gri

Cod produs: DJI-139480

Kit Drona DJI FPV Explorer Combo, 4K, 12MP, Autonomie 20 minute, Gri

Camera

Sensor 1/2.3-inch CMOS

  Effective Pixels: 12 MP

Lens FOV: 150°

  Equivalent Focal Length: 14.66 mm

  Aperture: f/2.8

  Focus Mode: FF

  Focus Range: 0.6 m to ∞

ISO Range 100-12800

Shutter Speed 1/50-1/8000 s

Still Photography Mode Single Shot

Max Image Size 3840×2160

Photo Format JPEG

Video Resolution 4K: 3840×2160@50/60fps

  FHD: 1920× 1080@50/60/100/120fps

Video Format MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video Bitrate 120 Mbps

Color Mode Standard, D-Cinelike

EIS Supported

Distortion Correction Supported

Supported File System exFAT (recommended)

  FAT32

Gimbal

Mechanical Range Tilt: -65° to 70°

Controllable Range Tilt: -50° to 58°

Stabilization Single-axis (tilt), electronic roll axis

Max Control Speed 60°/s

Angular Vibration Range ±0.01° (Normal mode)

Electronic Roll Axis Supported (can stabilize footage when the aircraft is tilted at up to 10°)

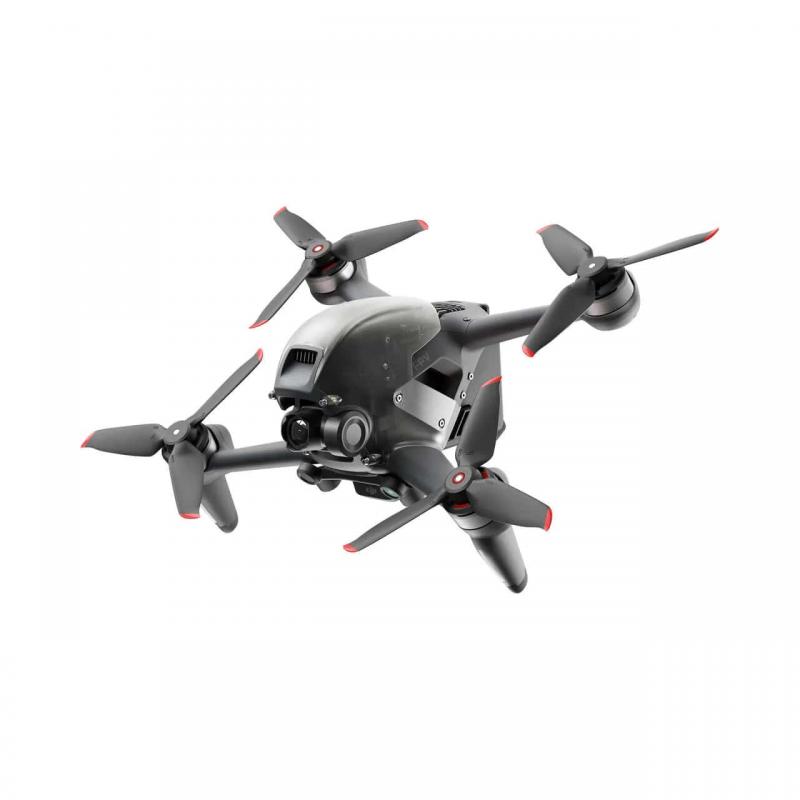

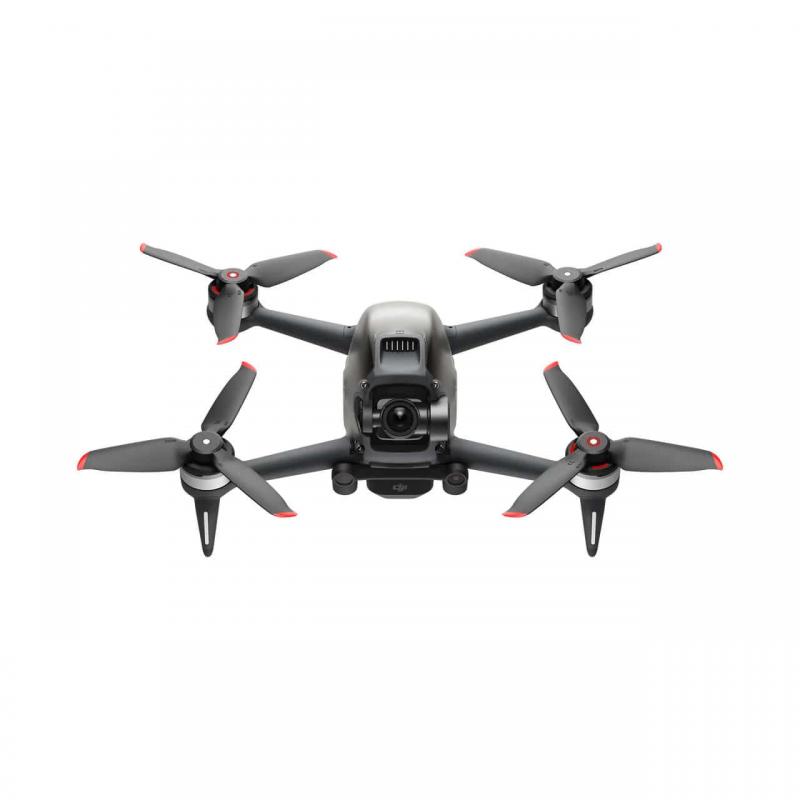

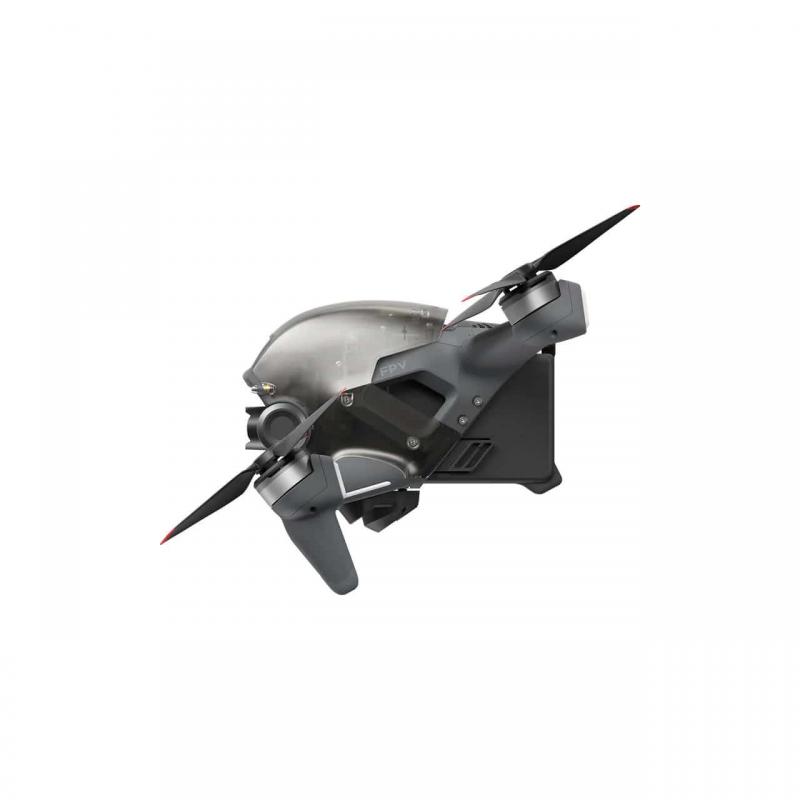

Aircraft

Takeoff Weight Approx. 795 g

Dimensions 255×312×127 mm (with propellers)

  178×232×127 mm (without propellers)

Diagonal Distance 245 mm

Max Ascent Speed M mode: No limit

  S mode: 15 m/s

  N mode: 8 m/s

Max Descent Speed M mode: No limit

  S mode: 10 m/s

  N mode: 7 m/s

Max Horizontal Speed N mode: 15 m/s

  S mode: 27 m/s

  M mode: 39 m/s (27 m/s in Mainland China)

Max Horizontal Acceleration 0-100 kph: 2 s (in windless conditions while flying in M mode)

Max Flight Altitude 6000 m

Max Flight Time Approx. 20 mins (measured while flying at 40 kph in windless conditions)

Max Hovering Time Approx. 16 mins (measured when flying in windless conditions)

Max Flight Distance 16.8 km (measured in windless conditions)

Max Wind Speed Resistance Level 6

Operating Temperature -10° to 40° C (14° to 104° F)

Transmitter Power (EIRP) 2.400-2.4835 GHz

  FCC: ≤ 31.5dBm

  CE: ≤ 20 dBm

  SRRC: ≤ 20 dBm

  MIC: ≤ 20 dBm

  5.725-5.850 Ghz

  FCC: ≤ 31.5 dBm

  CE: ≤ 14 dBm

  SRRC: ≤ 25.5 dBm

Antennas Four antennas

Global Navigation Satellite System GPS + GLONASS + Galileo

Hovering Accuracy Range Vertical:

  ±0.1 m (with vision positioning)

  ±0.5 m (with GPS positioning)

  Horizontal:

  ±0.3 m (with vision positioning)

  ±1.5 m (with GPS positioning)

Supported SD Cards microSD (up to 256 GB)

Internal Storage N/A

Sensing System

Forward (Binocular) Precision Measurement Range: 0.5-18 m

  Obstacle Sensing: Available in N mode only

  FOV: Horizontal 56°, Vertical 71°

Downward (Binocular + ToF) ToF Effective Measurement Height: 10 m

  Precise Hovering Range: 0.5-15 m

  Vision Sensor Hovering Range 0.5-30 m

Downward Auxiliary Light Single LED

Operating Environment Surfaces with discernible patterns

  Diffuse reflectivity > 20% (e.g. walls, trees, people)

  Adequate lighting (lux > 15)

Charger

Input 100-240V, 50/60 Hz, 1.8 A

Output Battery Port:

  25.2 V ± 0.1 V

  3.57 A ± 0.1 A (high current)

  1 A ± 0.2 A (low current)

  USB Port:

  5V/2A (×2)

Rated Power 86 W

Intelligent Flight Battery

Battery Capacity 2000 mAh

Nominal Voltage 22.2 V

Max Charging Voltage 25.2 V

Type LiPo 6S

Energy 44.4 Wh@0.5C

Discharge Rate Typical: 7C

Weight Approx. 295 g

Charging Temperature 5° to 40° C (41° to 104° F)

Max Charging Power 86 W

Video Transmission

Operating Frequency 2.400-2.4835 GHz

  5.725-5.850 GHz

Communication Bandwidth Max 40 MHz

Live View Mode Low-Latency Mode: 810p/100fps, with latency down to 30 ms*

  High-Quality Mode: 810p/60fps, with latency down to 40 ms*

  * The 150° FOV is only available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.

Max Video Bitrate 50 Mbps

Max Transmission Distance 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Audio Transmission Supported

DJI FPV Goggles V2

Weight Approx. 420 g (headband and antennas included)

Dimensions 184×122×110 mm (antennas excluded)

  202×126×110 mm (antennas included)

Screen Size 2-inches (×2)

Screen Refresh Rate 144 Hz

Operating Frequency 2.400-2.4835 GHz

  5.725-5.850 GHz

Transmitter Power (EIRP) 2.400-2.4835 GHz

  FCC: ≤ 28.5 dBm

  CE: ≤ 20 dBm

  SRRC: ≤ 20 dBm

  MIC: ≤ 20 dBm

  5.725-5.850 GHz

  FCC: ≤ 31.5 dBm

  CE: ≤ 14 dBm

  SRRC: ≤ 19 dBm

Communication Bandwidth Max 40 MHz

Live View Modes Low-Latency Mode: 810p/100fps, with latency down to 30 ms*

  High-Quality Mode: 810p/60fps, with latency down to 40 ms*

  * The 150° FOV is only available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.

Max Video Bitrate 50 Mbps

Max Transmission Distance 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Video Format MOV (Codec: H.264)

Audio Transmission Supported

Supported Video Playback Format MP4, MOV, MKV (H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)

Operating Temperature 0° to 40° C (32° to 104° F)

Power Input Dedicated DJI Goggles batteries

FOV 30° to 54°, adjustable

  Image size: 50-100%

Interpupillary Distance Range 58-70 mm

Supported SD Cards microSD (up to 256 GB)

DJI FPV Goggles V2 Battery

Capacity 1800 mAh

Voltage Max 9 V

Type LiPo 2S

Energy 18 Wh

Charging Temperature 0° to 45° C (32° to 113° F)

Max Charging Power 10 W

Operating Time Approx. 110 mins (using screen brightness of level 6 and tested in a 25°C/77°F environment)

DJI Goggles Integra

Weight Approx. 410 g (battery included)

Dimensions With antennas folded: 170×104×75 mm (L×W×H)

  With antennas unfolded: 205×104×104 mm (L×W×H)

Screen Size (single screen) 0.49 inch

Resolution (single screen) 1920×1080

Screen Refresh Rate Up to 100 Hz

Interpupillary Distance Range 56-72 mm

FOV (single screen) 44°

Video Format MOV

Supported Video Playback Format MP4, MOV (codec: H.264, H.265; audio format: AAC, PCM)

Operating Temperature -10° to 40° C (14° to 104° F)

Power Input Built-in battery

Supported SD Cards microSD (up to 512 GB)

Operating Frequency 2.4000-2.4835 GHz

  5.725-5.850 GHz

  The 5.8GHz frequency band is currently banned in certain countries and regions. For details, please refer to local laws and regulations.

Transmitter Power (EIRP) 2.4000-2.4835 GHz:

  <30 dBm (FCC)

  <20 dBm (CE/SRRC/MIC)

  5.725-5.850 GHz:

  <30 dBm (FCC)

  <23 dBm (SRRC)

  <14 dBm (CE/KC)

Live View Mode 1080p/100fps, with latency down to 30 ms

  1080p/60fps, with latency down to 40 ms

  Measured in an open outdoor environment without interference. Actual data varies depending on aircraft model.

Max Transmission Distance 10 km (FCC)

  6 km (CE)

  6 km (SRRC)

Max Video Bitrate 50 Mbps

  Measured in an open outdoor environment without interference. Actual data varies depending on operating environment.

Weight Approx. 185 g (headband included)

Dimensions 120×51×71 mm (L×W×H)

Capacity 2450 mAh

Voltage 5.6-8.4 V

Type Li-ion

Chemical System LiNiMnCoO2

Energy 17.64 Wh

Charging Temperature 5° to 45° C (41° to 113° F)

Max Charging Power 15 W (charging when powered off)

Operating Time Approx. 2 hours

DJI FPV Remote Controller 2

Operating Frequency 2.400-2.4835 GHz

  5.725-5.850 GHz

Transmitter Power (EIRP) 2.400-2.4835 GHz

  FCC: ≤ 28.5 dBm

  CE: ≤ 20 dBm

  SRRC: ≤ 20 dBm

  MIC: ≤ 20 dBm

  5.725-5.850 GHz

  FCC: ≤ 31.5 dBm

  CE: ≤ 14 dBm

  SRRC: ≤ 19 dBm

Max Transmission Distance 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

dimensions 190×140×51 mm

Weight 346 g

Operating Time Approx. 9 hours.

Charging Time 2.5 hours

Memory Card

Supported SD Cards microSD card

  The aircraft and DJI FPV Goggles V2 support up to 256GB capacity, whereas DJI Goggles Integra supports up to 512GB capacity. It is recommended to use a UHS-I Speed Grade 3 microSD card.

Recommended microSD Cards SanDisk High Endurance U3 V30 64GB microSDXC

  SanDisk Extreme PRO U3 V30 A2 64GB microSDXC

  SanDisk Extreme U3 V30 A2 64GB microSDXC

  SanDisk Extreme U3 V30 A2 128GB microSDXC

  SanDisk Extreme U3 V30 A2 256GB microSDXC

  Lexar 667x V30 128GB microSDXC

  Lexar High Endurance 128GB U3 V30 microSDXC

  Samsung EVO U3 (Yellow) 64GB microSDXC

  Samsung EVO Plus U3 (Red) 64GB microSDXC

  Samsung EVO Plus U3 256GB microSDXC

  Netac 256GB U3 A1 microSDXC
