802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
internal antenna x 6
Transmit / Receive
2.4GHz 2x2 5GHz 4x4
Processor
1.5 GHz tri-core processor
Memory
XD6S 128 MB Flash 512 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access) 1024-QAM high data rate 20/40/80/160 MHz bandwidth
Operating Frequency
2.4 G Hz / 5 GHz
Operating Mode
Wireless router mode Range extender mode Access point mode Media bridge mode

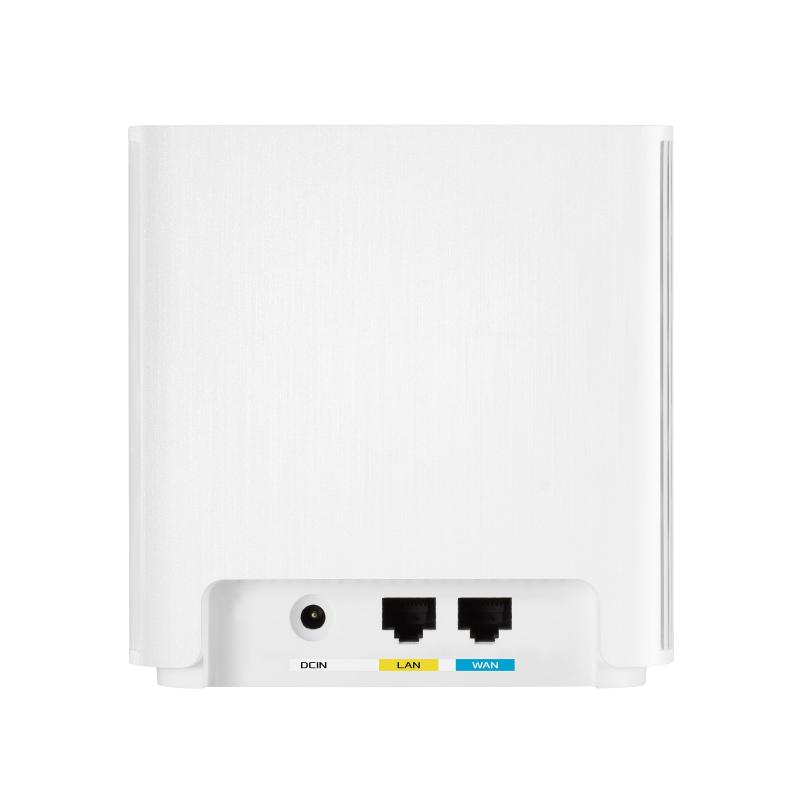

I/O Ports
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2 A current
Package Content
ZenWiFi XD6S RJ-45 cable Power adapter Wall mount kit Warranty card Quick start guide *Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.
Product Weight (g)
XD6S: 425 g
Product Dimensions
126.4 x 59.05 x 129.7 mm
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh • Primary AiMesh Router • AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps." Customized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
Support Guest Network • Maximum Guest Network Rule : 9 Guest Network Connection Time Limit WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
Security
WPS Let's Encrypt SSH Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking
VPN
VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Server IPSec VPN Server Open VPN VPN Server PPTP
Traffic Control
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS • Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN Port Forwarding • Maximum Port Forwarding Rule : 64 Port Triggering DMZ DDNS
LAN
DHCP Server IGMP Snooping IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL)
Wireless
UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness Universal Beamforming Explicit Beamforming
Administration
Configuration Backup and Restore Diagnosis Tools Feedback System System Log
