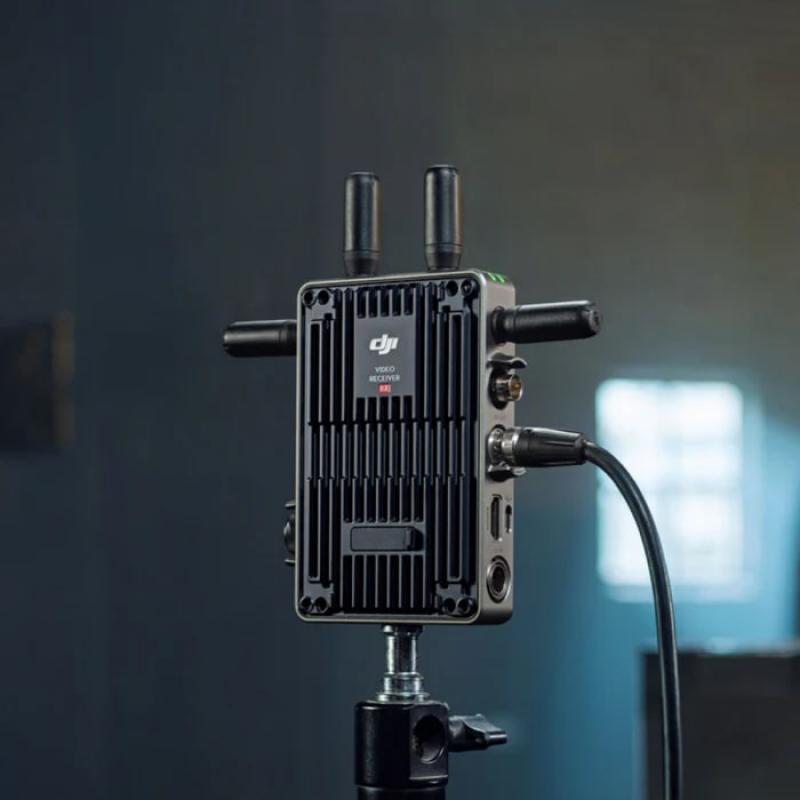

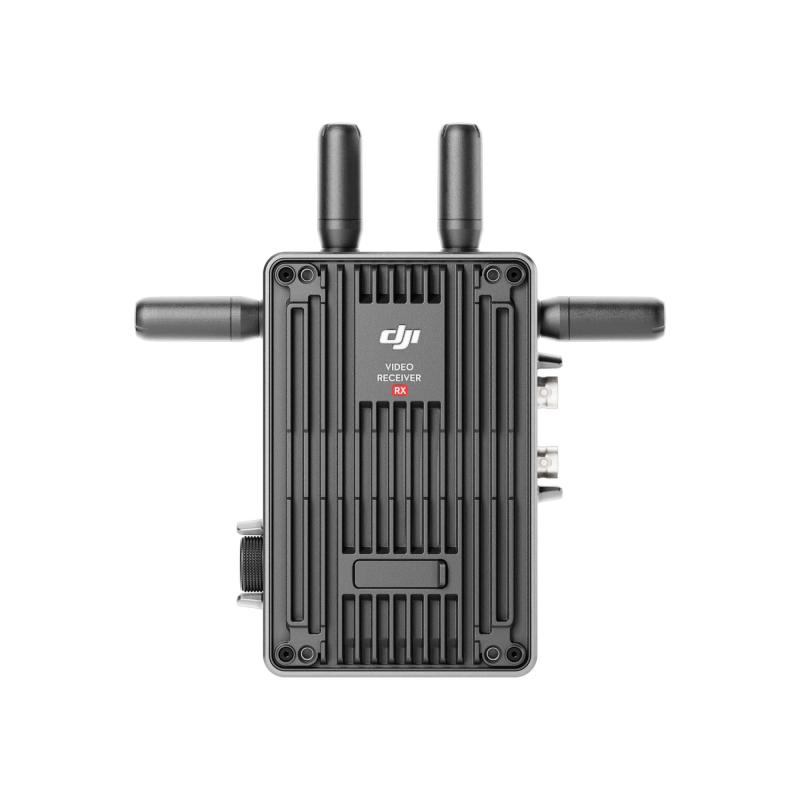

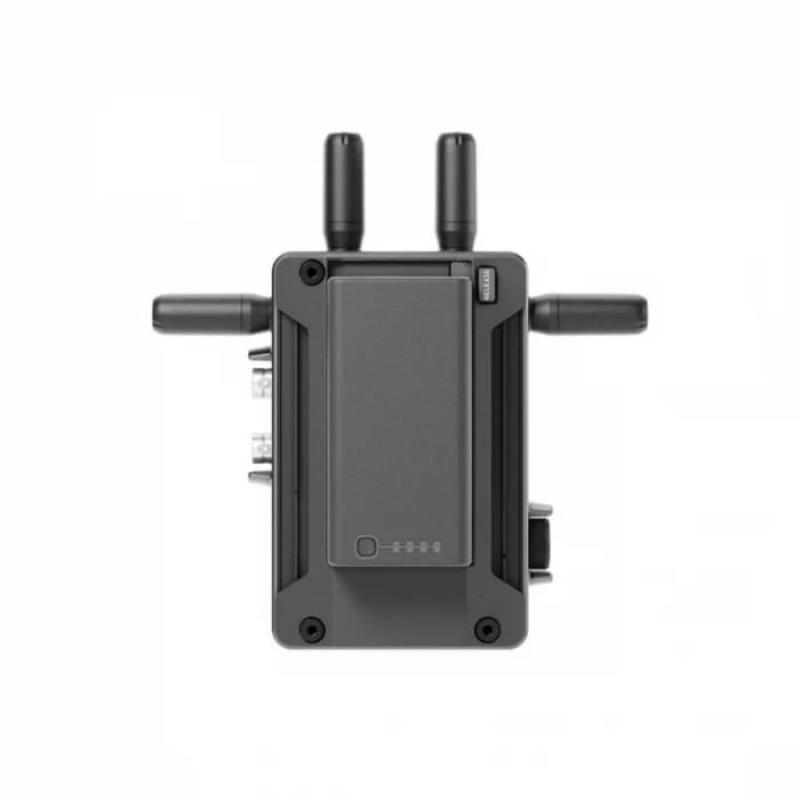

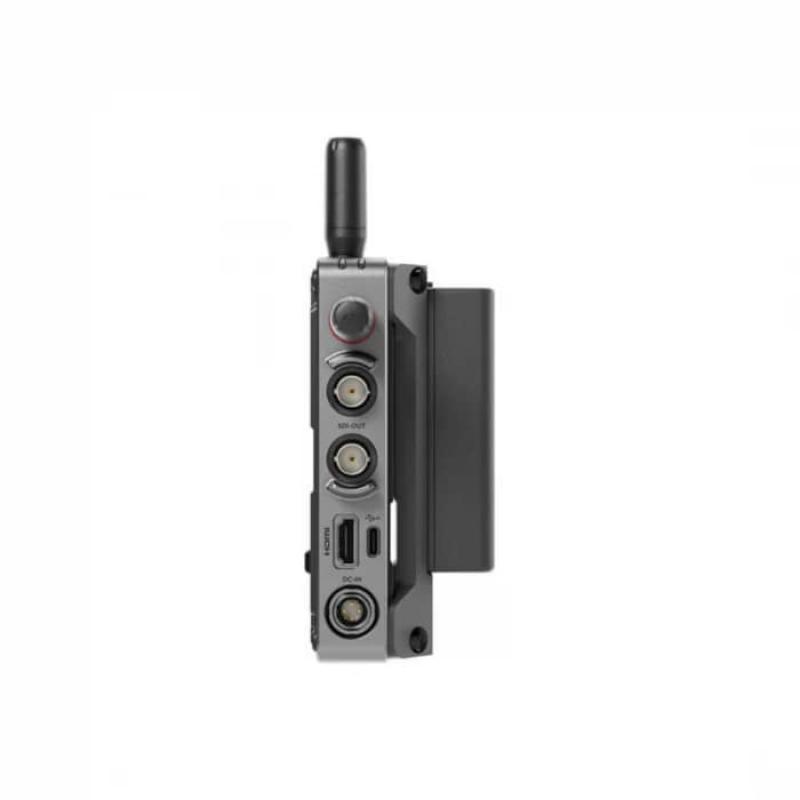

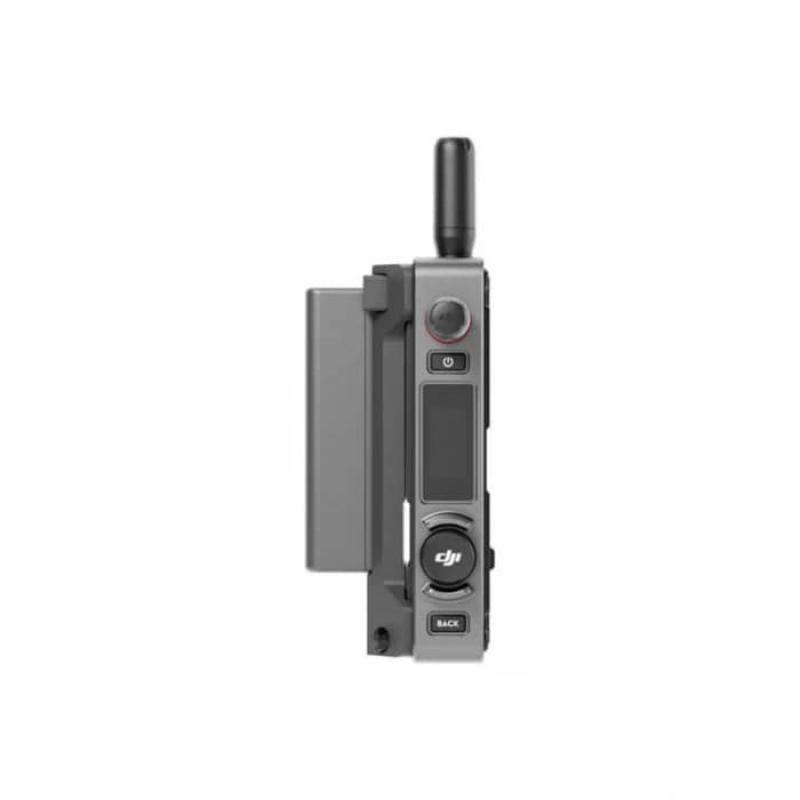

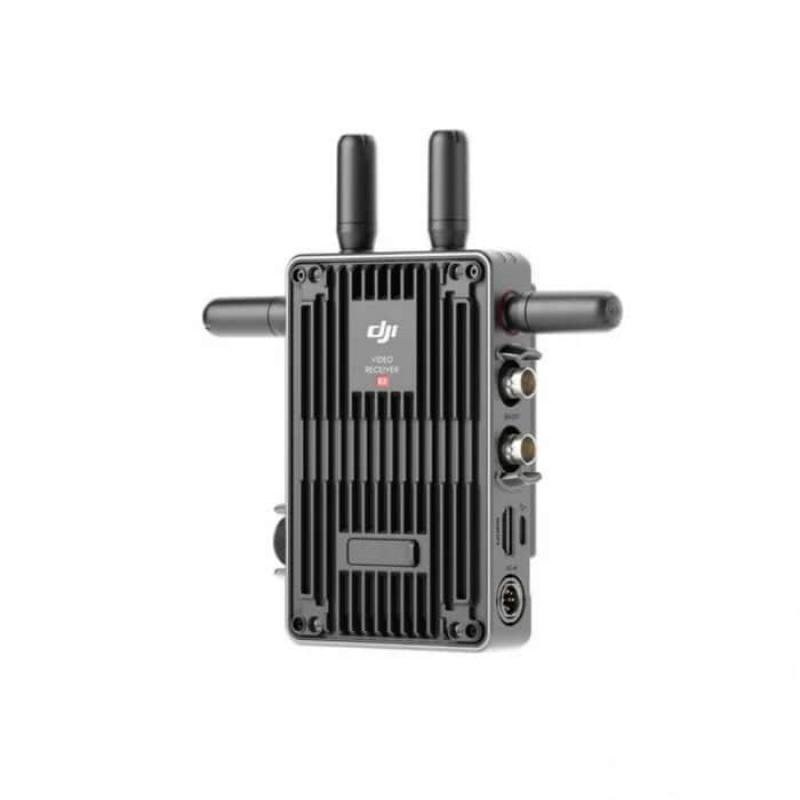

Receptor video DJI, 1080p/60fps, 6km, Negru

Cod produs: DJI-139519

Receptor video DJI, 1080p/60fps, 6km, Negru

Specifications

Weight

DJI Video Transmitter: Approx. 350 g (excluding antennas)

DJI High-Bright Remote Monitor: Approx. 727 g (excluding antennas)

DJI Video Receiver: Approx. 350 g (excluding antennas)"

Dimensions

DJI Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)

DJI High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)

DJI Video Receiver: 127×87×26 mm (L×W×H, excluding antennas)

Operating Frequency

When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:

Non-DFS Frequency Band:

2.400-2.484 GHz

5.150-5.250 GHz

5.725-5.850 GHz

DFS Frequency Band:

5.250-5.350 GHz

5.470-5.600 GHz

5.650-5.725 GHz

When using the DJI Video Transmitter with the DJI Video Receiver:

Non-DFS Frequency Band:

2.4000-2.4835 GHz

5.150-5.250 GHz

5.725-5.850 GHz

DFS Frequency Band:

5.250-5.350 GHz

5.470-5.725 GHz

5.725-5.850 GHz

In some countries and regions, the 5.1/5.2/5.8 GHz frequencies are prohibited, or the 5.1/5.2 GHz frequencies are only allowed for indoor use. Check local laws and regulations for more information. 5.6000-5.650 GHz is not used.

Transmitter Power (EIRP)

When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:

2.400-2.484 GHz:

<33 dBm (FCC)

<20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:

<23 dBm (FCC/SRRC/MIC)

5.250-5.350 GHz:

<30 dBm (FCC)

<23 dBm (SRRC/MIC)

5.470-5.600 GHz，5.650-5.725 GHz:

<30 dBm (FCC)

<23 dBm (CE/MIC)

5.725-5.850 GHz:

<33 dBm (FCC/SRRC)

<14 dBm (CE)

When using the DJI Video Transmitter with the DJI Video Receiver:

2.4000-2.4835 GHz:

<33 dBm (FCC)

<20 dBm (SRRC/CE/MIC)

5.725-5.850 GHz:

<33 dBm (FCC)

<14 dBm (CE)

<23 dBm (SRRC)

Max Bandwidth

40 MHz

Max Bitrate

40 Mbps

Power Consumption

DJI Video Transmitter: 11 W

DJI Video Receiver: 9 W

Power Supply Voltage

6 to 18 V

Output Voltage

Power output port: 6 to 18 V

Operating Time

DJI Video Transmitter: 3 hours 40 minutes

Measured at room temperature (25°C/77°F) with a fully charged WB37 Intelligent Battery.

DJI High-Bright Remote Monitor: 2 hours

Measured at room temperature (25°C/77°F) with a fully charged WB37 Intelligent Battery.

DJI Video Receiver: 3 hours 50 minutes

Tested at room temperature (25°C/77°F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter.

Input Video Format

"DJI Video Transmitter:

1080p: 23.98/24/25/29.97/30/50/59.94/60fps

720p: 50/59.95/60fps

Output Video Format

When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:

1080p: 23.98/24/25/29.97/30/50/59.94/60fps

720p: 50/59.95/60fps

When using the DJI Video Transmitter with the DJI Video Receiver:

1080p: 23.98/24/25/29.97/30/50/59.94/60fps

720p: 50/59.94/60fps

When using the Ronin 4D Video Transmitter with the DJI Video Receiver:

1080p: 24/25/30/50/60fps

Input Audio Format

SDI embedded, HDMI embedded

Output Audio Format

PCM

Video Transmission System

O3 Pro

Video Transmission Latency

70 ms

Measured when shooting 1080p/60fps video.

Video Coding Format

H.264

Max Transmission Distance

6 km (FCC)

4 km (CE/SRRC/MIC)

Measured in open environments without obstructions or interference.

Operating Temperature

-10° to 45° C (14° to 113° F)

When using the WB37 Intelligent Battery, the recommended operating temperature is above 0° C (32° F). Take measures to keep the battery warm when using in temperatures below 0° C (32° F).

Mirror Control Mode Supported Camera Models

ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control)
